One of the most common problems in industrial battery procurement is that buyers receive a technical datasheet but do not fully understand what the specifications actually mean.
As a result, batteries may be selected based on:
- Capacity alone
- Price alone
- Supplier recommendations
without fully evaluating whether the battery is suitable for the application.
For industrial nickel-cadmium (NiCd) batteries used in:
- Power plants
- Substations
- Railway systems
- Telecom networks
- UPS systems
understanding datasheet specifications is essential.
This guide explains how to read an industrial NiCd battery datasheet like an engineer.
Why Battery Datasheets Matter
A datasheet is more than a marketing brochure.
It contains critical technical information used for:
- Battery sizing
- System design
- Charger selection
- Project specification compliance
- Lifecycle cost evaluation
Incorrect interpretation can lead to expensive mistakes.
Specification 1: Nominal Voltage
The first specification most buyers see is:
Nominal Voltage
For industrial NiCd batteries:
Each cell typically provides:
Examples:
| System Voltage | Number of Cells |
|---|---|
| 24V | 20 Cells |
| 48V | 40 Cells |
| 110V | 92 Cells |
| 220V | 184 Cells |
Understanding cell count is critical for system design.
Specification 2: Rated Capacity (Ah)
Capacity is usually expressed in:
Ampere-Hours (Ah)
Example:
- KPM100 = 100Ah
- KPM200 = 200Ah
- KPL500 = 500Ah
However, buyers should understand:
100Ah does not always mean 100Ah under every discharge condition.
Capacity depends on:
- Discharge rate
- Temperature
- End voltage
Specification 3: Discharge Curves
One of the most important sections of any datasheet is the discharge table.
Example:
| Discharge Time | Capacity |
|---|---|
| 8 Hours | 100Ah |
| 5 Hours | 90Ah |
| 1 Hour | 75Ah |
| 30 Minutes | 65Ah |
Higher discharge rates reduce available capacity.
This is normal for all battery technologies.
Specification 4: End Voltage
End voltage is the minimum voltage allowed during discharge.
Common values include:
| Application | End Voltage |
|---|---|
| Telecom | 1.0V/Cell |
| UPS | 1.0V–1.1V/Cell |
| Utility | 1.0V/Cell |
Selecting the correct end voltage affects battery sizing calculations.
Specification 5: Float Voltage
Most industrial NiCd batteries operate continuously on float charge.
Typical float voltage:

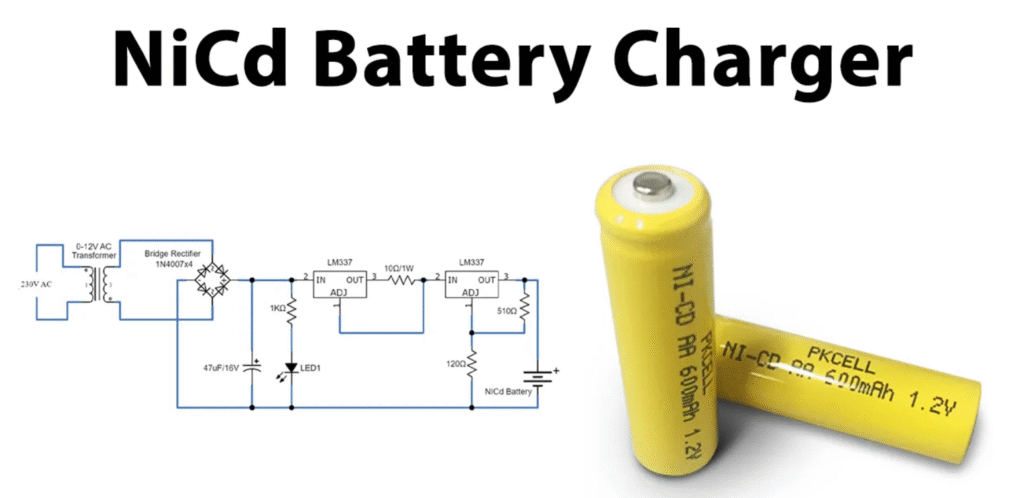

The charger must be compatible with battery specifications.
Incorrect float voltage may shorten battery life.
Specification 6: Equalization Voltage
Equalization charging is used to:
- Restore balance
- Improve performance
- Recover capacity
Typical values:
Always follow manufacturer recommendations.
Specification 7: Operating Temperature Range
Industrial NiCd batteries are known for wide temperature tolerance.
Typical range:
| Condition | Temperature |
|---|---|
| Charging | -20°C to +45°C |
| Discharging | -40°C to +60°C |
| Storage | -50°C to +60°C |
This is one of the reasons NiCd batteries are preferred for harsh environments.
Specification 8: Service Life
Service life is often listed as:
- 15 years
- 20 years
- 25 years
However, buyers should verify:
- Design life
- Expected operational life
- Warranty period
These are not always the same.
Specification 9: Internal Resistance
Internal resistance affects:
- Voltage stability
- Current capability
- Efficiency
Lower resistance generally means:
- Better discharge performance
- Higher reliability
This specification becomes especially important for:
- UPS systems
- Railway applications
- Emergency starting systems
Specification 10: Weight and Dimensions
Many buyers overlook this section.
Dimensions affect:
- Battery room design
- Cabinet sizing
- Transportation planning
Weight affects:
- Structural requirements
- Installation costs
Always verify dimensional drawings before procurement.
Specification 11: Short Circuit Current
Industrial datasheets often include:
Short Circuit Current
This value indicates:
- Fault current capability
- Protection device requirements
Engineers use this information when designing:
- Circuit breakers
- Fuses
- Safety systems
Specification 12: IEC Compliance
Professional datasheets often reference standards such as:
- IEC 60623
- IEC 62259
- IEC 61427
These standards help verify product performance and quality.
Common Datasheet Mistakes Buyers Make
Looking Only at Ah Rating
Capacity alone does not determine suitability.
Ignoring Discharge Curves
Backup time calculations depend on discharge performance.
Overlooking Temperature Data
Environmental conditions significantly affect system performance.
Ignoring Charger Requirements
Improper charging can damage batteries.
Not Comparing Like-for-Like Specifications
Always compare batteries under identical conditions.
Questions to Ask Suppliers About Datasheets
Before purchasing, ask:
- Is capacity rated at 5-hour or 8-hour discharge?
- What end voltage was used?
- Which IEC standard applies?
- What is the expected service life?
- Can discharge curves be provided?
Professional suppliers should answer these questions easily.
FAQ
What is the most important specification in a NiCd battery datasheet?
Capacity, discharge curves, and service life are usually the most critical.
Why do discharge curves matter?
Because actual capacity varies with discharge rate.
Is nominal voltage the same as charging voltage?
No. Charging voltage is typically higher than nominal voltage.
Why should I check operating temperature?
Temperature directly affects performance and lifespan.
Are all 100Ah batteries the same?
No. Actual performance depends on battery design and discharge conditions.
Conclusion
Understanding a NiCd battery datasheet allows buyers to make informed purchasing decisions and avoid costly mistakes.
Instead of focusing only on capacity, engineers should evaluate:
- Voltage
- Discharge performance
- Temperature range
- Lifespan
- Internal resistance
- Compliance standards
A proper understanding of these specifications helps ensure reliable battery selection for critical industrial applications.
