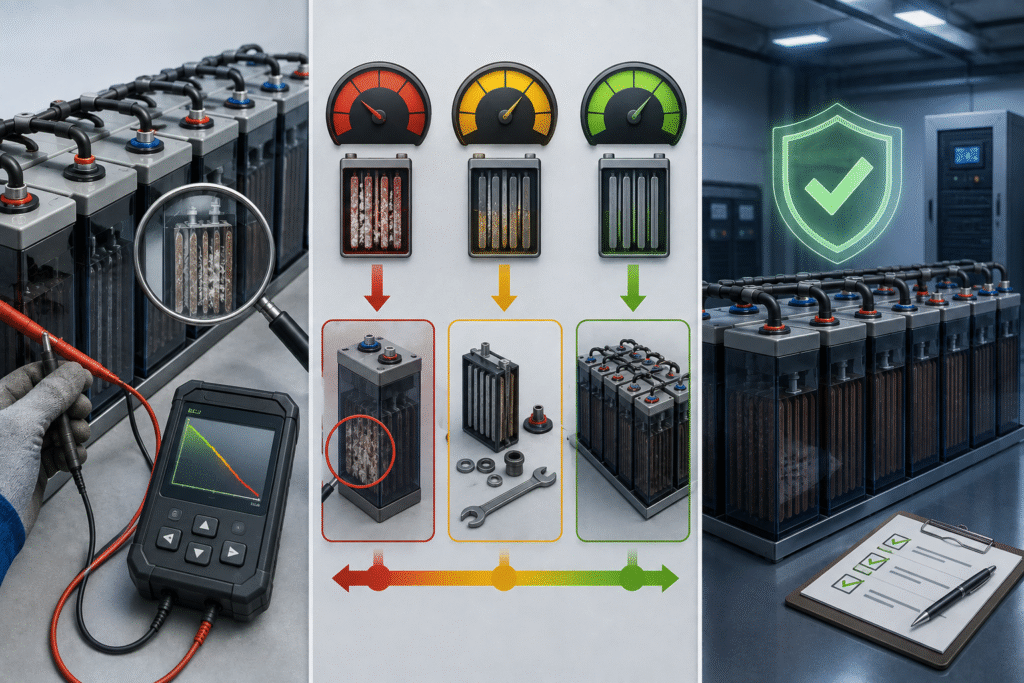

OPzV Capacity Test Below 80%: A Practical Guide to Recovery, Cell Replacement, and Full Bank Replacement

Introduction

A 2V OPzV battery bank may look completely normal during daily float operation and still fail a capacity test.

The charger shows the correct voltage. Individual cells appear visually normal. There may be no swelling, leakage, or obvious overheating.

Then a controlled discharge test shows:

Measured capacity: 76% of rated capacity.

For a telecom operator, utility company, UPS contractor, solar EPC, or substation engineer, this immediately raises an important question:

Does the complete OPzV battery bank need to be replaced?

The answer should not be based on one number alone.

A low capacity result may be caused by:

• Actual battery aging
• One weak cell limiting the complete string
• Incomplete charging before the test
• Incorrect discharge rate
• Incorrect end voltage
• Battery temperature
• Test-equipment errors
• Cable or load-bank losses
• Incorrect capacity calculation

IEEE 1188 is the principal recommended practice covering maintenance, testing, and replacement of stationary VRLA batteries. IEEE 1188-2025 is now the active edition and supersedes IEEE 1188-2005.

Historically, the 80% rated-capacity level has been widely used as an important end-of-life and replacement benchmark for stationary VRLA batteries. The earlier IEEE 1188 edition explicitly recommended replacement when measured capacity fell below 80% of the manufacturer’s rating.

For today’s projects, the current IEEE 1188-2025 edition and the battery manufacturer’s instructions should be used for the final maintenance and replacement decision.

What Does “80% Capacity” Actually Mean?

Suppose an OPzV battery is rated:

2V 1000Ah at C10

This does not mean that every field test should simply discharge the battery at any convenient current and expect exactly 1000Ah.

Rated capacity is tied to defined conditions, including:

• Discharge duration
• Discharge current
• Final voltage
• Battery temperature
• Fully charged initial condition

If a manufacturer specifies:

1000Ah at the 10-hour rate

the reference discharge current may be approximately:

1000Ah ÷ 10h = 100A

but the exact test procedure must still follow the manufacturer’s discharge table and final-voltage specification.

A battery that delivers:

800Ah under the correct rated conditions

is at approximately:

80% of rated capacity.

But if the test conditions were wrong, the calculated percentage may not represent the real state of health.

Step 1: Verify That the Battery Was Fully Charged Before Testing

This is one of the most common reasons a relatively new OPzV battery fails a field capacity test.

Before a performance test, confirm that the bank completed the manufacturer’s charging procedure.

Check:

• Float voltage
• Boost/absorption voltage
• Charging current
• Charging duration
• Battery temperature
• Time since the previous discharge

A battery that has spent several days at partial state of charge should not be treated as fully charged simply because the charger display shows “Float.”

The charging current should normally decline and stabilize as the battery approaches full charge.

If the battery was incompletely charged before the test, recharge it properly before making a replacement decision.

Step 2: Confirm the Correct Discharge Rate

An OPzV battery may have several discharge ratings.

For example:

• C3
• C5
• C8
• C10
• C20

The available Ah capacity changes with discharge rate.

A battery rated at C10 cannot automatically be tested at a much higher current and then compared directly with the C10 Ah value.

The correct comparison is:

Measured performance vs. manufacturer’s published performance at the same discharge rate and final voltage.

This is especially important when an OPzV bank powers:

• Large UPS systems
• Substation DC equipment
• Telecom loads
• Inverters
• Emergency systems

Step 3: Check the End-of-Discharge Voltage

Capacity calculations depend strongly on the final voltage.

For example, a manufacturer may publish performance to:

• 1.85V/cell
• 1.80V/cell
• 1.75V/cell

depending on discharge duration.

If the test is stopped at a higher voltage than the published value, measured capacity will naturally appear lower.

Conversely, continuing well below the manufacturer’s minimum voltage simply to improve the calculated capacity can damage the battery.

The test procedure should be agreed before the discharge begins.

Step 4: Correct for Battery Temperature

Battery capacity changes with temperature.

A test performed at 10°C should not necessarily be compared directly with a rating specified at approximately 20°C or 25°C.

IEEE stationary-battery capacity-test procedures include temperature correction because temperature affects the measured result.

Record:

• Ambient temperature
• Average cell temperature
• Initial battery temperature

Do not use the battery-room thermostat as a substitute for actual battery temperature.

Step 5: Review Every Individual Cell During the Test

A complete OPzV string is usually limited by its weakest cell.

Suppose a 110V DC system contains dozens of 2V cells.

During most of the discharge:

• Cell 1–53 remain relatively stable.
• Cell 54 begins falling quickly.
• The complete battery reaches its final voltage early.

The total capacity result may be:

74%

but most cells may still have substantially more available capacity.

In this case, the project does not necessarily have a uniform full-bank capacity problem.

It may have:

one severely deteriorated cell.

Record each cell voltage:

• Before discharge
• At regular intervals
• Near the end of discharge
• Immediately before test termination

A weak OPzV cell often becomes much easier to identify near the end of the discharge curve.

Step 6: Look at the Voltage Spread

Suppose most OPzV cells measure:

1.87–1.90V

near the end of the test.

One cell measures:

1.64V

That deviation is more significant than a small float-voltage difference seen during normal standby operation.

A cell that:

• Drops first under load
• Recovers strongly when the load is removed
• Shows higher internal resistance

is a strong candidate for further investigation.

Step 7: Compare Internal Resistance with Baseline Values

Internal resistance or impedance measurements are useful for OPzV maintenance, but the best comparison is generally not:

“Is this value higher than Battery Brand X?”

Instead compare:

Current cell value vs. its own commissioning baseline

and

Current cell value vs. neighboring cells of the same model and age.

Trend information can reveal deterioration before complete capacity failure.

The current IEEE 1188 standard specifically covers maintenance and testing practices for stationary VRLA batteries, making baseline and trending data important parts of a professional battery-management program.

Step 8: Check Battery Temperature During Discharge

One weak cell may also run hotter.

Possible causes include:

• Higher internal resistance
• Internal leakage
• Internal shorting
• Connection problems

A thermal scan can help identify:

• Hot terminals
• Hot intercell connectors
• One abnormal battery
• Uneven rack temperature

If the heat is concentrated at a terminal rather than the battery case, inspect the electrical connection before blaming the cell itself.

Scenario A: Capacity Test Is 78%, but All Cells Are Uniform

If:

• Every cell voltage is similar
• Internal resistance has increased uniformly
• Battery age is advanced
• Runtime has gradually declined

the complete bank may simply be approaching end of useful life.

In this case, repeated individual cell replacement is unlikely to restore the original performance economically.

A planned full-bank replacement may be the better option.

Scenario B: Capacity Test Is 75%, but One Cell Collapses Early

If most cells appear healthy but one cell reaches its discharge limit far earlier, consider:

• Individual cell condition
• Internal resistance
• Self-discharge
• Charging history

Possible options include:

1. Manufacturer-approved corrective charging
2. Individual cell capacity testing
3. Replacement of the abnormal cell

However, the age of the complete string matters.

Installing one new OPzV cell into a very old string can create further mismatch.

Scenario C: A Relatively New OPzV Bank Tests Below 80%

Do not immediately conclude that the batteries have reached end of life.

Review:

• Commissioning procedure
• Initial charging
• Float voltage history
• Battery-room temperature
• Charger configuration
• Test methodology

IEEE 1188a was specifically updated to address premature capacity failures in stationary VRLA batteries, illustrating that a low result during expected service life requires investigation rather than automatic assumptions.

Contact the battery manufacturer when a relatively young bank produces an unexpectedly poor capacity result.

Scenario D: The Bank Passes Capacity but One Cell Has High Internal Resistance

Do not ignore the cell simply because the complete bank currently passes.

Capacity testing answers:

Can the bank support the required load today?

Internal-resistance trending may provide an earlier warning of:

Which cell may become the next limiting unit?

Both types of data are useful.

Can Equalizing Charge Restore OPzV Capacity?

Sometimes charging correction may improve a battery that has been chronically undercharged.

However, OPzV is a valve-regulated GEL battery.

It should not receive an arbitrary flooded-battery equalization program.

Before any corrective charging, confirm:

• Manufacturer-approved voltage
• Current limit
• Duration
• Battery temperature

Equalization cannot repair:

• Severe grid corrosion
• Active-material loss
• Internal short circuit
• Mechanical damage
• Severe dry-out

Individual Cell Replacement vs. Complete Bank Replacement

Individual Cell Replacement May Be Reasonable When:

• The bank is relatively young.
• One cell is clearly abnormal.
• Other cells pass testing.
• The same OPzV model is available.
• The manufacturer approves the replacement.

Complete Bank Replacement Becomes More Attractive When:

• Many cells are deteriorating.
• Overall capacity is below requirement.
• The bank is near expected service life.
• Resistance values are increasing throughout the string.
• Several cells require repeated replacement.

For a critical substation or UPS system, availability risk is often more important than extracting the final months of theoretical battery life.

The Load Requirement Matters

A battery bank at 78% capacity is not automatically incapable of supporting the application.

Suppose the original system was deliberately oversized.

The current battery may still technically support:

• Required load
• Required backup duration

However, the deterioration trend has become important.

Historically, IEEE 1188 treated approximately 80% rated capacity as an important replacement point because deterioration may accelerate as the battery moves beyond this level.

For current projects, use IEEE 1188-2025 together with the application duty and manufacturer guidance.

Recommended Test Record

For each capacity test, record:

Item	Record
Battery model
Installation date
Rated capacity
Test discharge rate
Final voltage
Initial battery temperature
Test duration
Calculated capacity
Lowest cell voltage
Highest cell voltage
Internal resistance
Battery temperature

This historical record is extremely valuable when negotiating warranty claims or planning a replacement project.

Common Mistakes

Replacing the Whole Bank After One Failed Test

Verify charging, temperature, test rate, and weak-cell behavior first.

Testing Immediately After a Long Partial-Charge Period

The bank may not have started fully charged.

Ignoring Individual Cell Voltage

A single weak cell may terminate the test early.

Using Resting Voltage as a Capacity Test

Voltage does not measure Ah capacity directly.

Replacing One Cell in a 15-Year-Old Bank Without Evaluating the Rest

The replacement may only postpone a larger failure.

Trying Repeated High-Voltage Recovery Charging

This can damage OPzV batteries if not manufacturer-approved.

Frequently Asked Questions

Is 80% capacity the end of life for an OPzV battery?

The 80% level has long been an important stationary-VRLA replacement benchmark under IEEE 1188 practices. IEEE 1188-2025 is now the active standard, so current project decisions should follow it together with manufacturer and system requirements.

Can a 75% OPzV bank still work?

Possibly, depending on load and backup-time requirements, but the bank requires engineering evaluation and replacement planning.

Can one weak cell reduce the capacity result of an entire string?

Yes. A series battery bank is often limited by its weakest cell.

Is internal resistance enough to determine capacity?

No. It is useful for trending but does not replace a controlled discharge test.

Should a young OPzV battery failing a capacity test be replaced immediately?

Not before confirming full charge, test procedure, temperature, charger settings, and individual cell condition.

Conclusion

An OPzV battery bank testing below 80% rated capacity requires a structured engineering investigation.

Evaluate:

• Test accuracy
• Initial state of charge
• Discharge rate
• Final voltage
• Temperature
• Individual cell voltage
• Internal resistance
• Battery age
• Application load requirement

The final decision may be:

corrective charging, individual cell replacement, or complete bank replacement.

For OPzV projects, provide the battery model, number of cells, installation date, rated C10 capacity, test current, test duration, end voltage, cell temperatures, individual voltage data, and internal-resistance readings to support an accurate replacement recommendation.

Suggested Internal Links:

• OPzV vs OPzS Battery Life, Cycle Performance, and Cost Analysis
• Environmental and Operational Factors Affecting OPzV Battery Performance
• How to Choose Between OPzV and OPzS Batteries for Energy Storage Systems
