Introduction

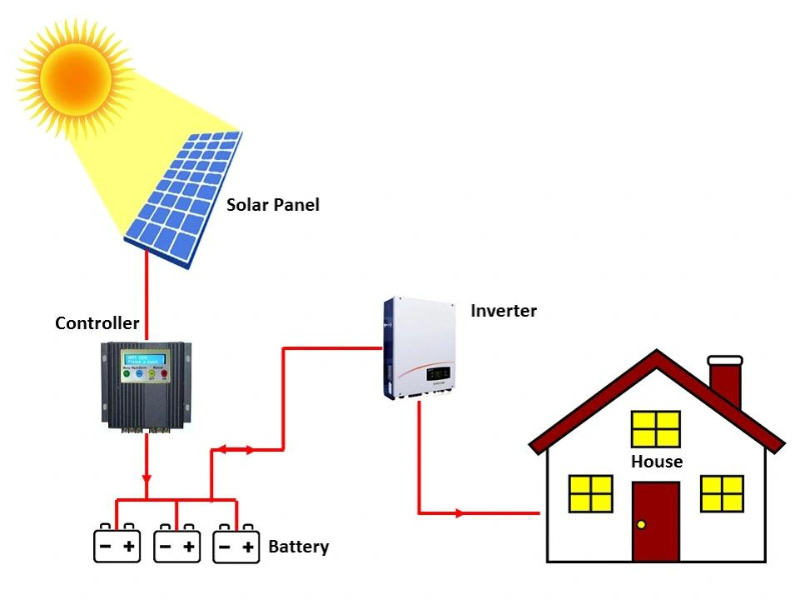

A repeated clicking sound from a charger, inverter, UPS, solar controller, DC contactor, or battery protection relay can be more than an annoying noise.
A typical customer may describe the problem as:
- “The inverter keeps clicking.”
- “The relay turns on and off every few seconds.”
- “The charger connects to the battery and immediately disconnects.”
- “The contactor keeps opening and closing.”
- “Everything starts when the battery voltage rises, then stops again.”
In lead-acid energy storage systems, this behavior is often caused by voltage moving repeatedly across a control threshold.
A common sequence is:
- Battery voltage is low.
- Relay opens or inverter shuts down.
- Load is removed.
- Battery voltage recovers.
- Voltage exceeds the reconnect threshold.
- Relay closes.
- Load current returns.
- Battery voltage immediately drops.
- Relay opens again.
- The cycle repeats.
Inverter manufacturers use separate shutdown and restart thresholds specifically to avoid this kind of cycling. Victron, for example, documents low-battery shutdown and higher restart thresholds, with automatic restart logic after the battery voltage recovers.
However, incorrect settings are only one possible cause. Weak batteries, undersized cables, poor terminals, unstable solar charging, generator voltage fluctuations, and contactor faults can all create similar symptoms.
What Is Relay Chattering?
A relay or contactor normally has two stable states:
- Open
- Closed
“Chattering” occurs when it switches rapidly between these states.
In a battery system, a relay may be controlled by:
- Battery voltage
- Battery SOC
- Charger status
- Inverter alarm
- Generator-start logic
- Low-voltage disconnect
- High-voltage protection
- Temperature protection
Battery monitors may also use separate “set” and “clear” thresholds for low-voltage relay control to prevent rapid switching.
If the difference between these thresholds is too small—or the battery voltage itself is unstable—the relay can repeatedly switch.
Reason 1: Battery Voltage Recovers Immediately After the Load Disconnects
This is one of the most common causes.
Consider a lead-acid battery supplying an inverter.
Under load:
Battery voltage = 44.0V
The inverter shuts down.
Once the inverter stops drawing current:
Battery voltage recovers to 46.5V
If the reconnect threshold is 46V, the inverter or relay reconnects.
Immediately after the load returns:
Battery voltage falls back below 44V
and the system disconnects again.
The battery has not been recharged during these few seconds.
Its voltage simply recovered because the discharge current disappeared.
This behavior becomes much more pronounced when the battery is:
- Deeply discharged
- Aged
- Sulfated
- Too small for the load
- Operating at low temperature
- High in internal resistance
Reason 2: The Restart and Disconnect Thresholds Are Too Close
A control system should normally include sufficient hysteresis.
For example:
Disconnect threshold: 44V
Reconnect threshold: 44.5V
This small difference may allow the relay to reconnect after only minor voltage recovery.
A more appropriate system might require the battery to recover to a significantly higher voltage—or confirm actual charging—before reconnecting.
The correct thresholds depend on:
- Battery technology
- System voltage
- Load current
- Battery manufacturer
- Inverter design
- Required depth of discharge
Do not copy one voltage setting from another project.
A 48V AGM system, OPzV bank, and flooded battery bank may require different operating strategies.
Reason 3: The Battery Bank Has Lost Capacity
A battery with reduced capacity can still reach a normal-looking resting voltage.
However, when the relay reconnects the load, voltage falls quickly.
Typical symptoms include:
- Relay clicking
- Inverter restarting repeatedly
- Normal-looking no-load voltage
- Very short runtime
- Large loaded voltage drop
- Rapid voltage recovery after shutdown
Battery voltage alone does not prove usable capacity.
A capacity test under the specified discharge conditions is more meaningful.
Reason 4: One Battery in the Series String Is Weak
Suppose a 48V bank contains four 12V batteries.
Three batteries may operate normally while one weak battery drops much faster.
The inverter monitors only total voltage.
The weak battery may cause the total string voltage to fall below the disconnect point every time the load starts.
After shutdown, its voltage partially recovers and the relay reconnects.
Measure every battery:
- Before startup
- During load
- Immediately before disconnection
- Immediately after disconnection
The battery with the greatest voltage change requires further investigation.
Reason 5: Battery Cables Are Too Small
Voltage drop between the battery and inverter can make relay cycling much worse.
For example:
Battery terminals under load: 46.5V
Inverter terminals: 43.8V
The battery itself may still be above the shutdown voltage, but the inverter sees only 43.8V.
When the inverter disconnects, current stops and cable voltage drop disappears.
The inverter now sees the higher recovered voltage and reconnects.
Then cable voltage drop immediately returns.
This creates a repeating cycle.
Check:
- Cable cross-sectional area
- Cable length
- Maximum DC current
- Cable temperature
- Voltage drop
Low-voltage, high-power inverter systems are especially sensitive to cable resistance.
Reason 6: A Loose or Corroded Connection Is Creating Intermittent Voltage Drop
A high-resistance terminal can behave similarly to an undersized cable.
Possible locations include:
- Battery terminals
- Cable lugs
- Main breaker
- Fuse holder
- Busbars
- Disconnect switches
- Inverter DC terminals
Under high current, the connection may:
- Heat
- Develop greater voltage drop
- Cause inverter shutdown
After current stops:
- It cools
- Voltage appears normal
- Relay reconnects
Inspect the complete DC circuit rather than assuming the relay itself is faulty.
Reason 7: The Battery Is Too Small for the Connected Load
A battery bank may have enough nominal energy but insufficient current capability.
This commonly occurs with:
- Water pumps
- Refrigerators
- Air conditioners
- Compressors
- Motors
- Large transformers
Starting current may be several times the normal running current.
Victron notes that motors and pumps can create startup current high enough to trigger inverter overcurrent shutdown and automatic restart attempts.
The relay may therefore click only when one particular appliance starts.
Diagnostic Test
Disconnect major loads and start the inverter with no AC load.
Then reconnect appliances individually.
If clicking begins when one motor starts, investigate:
- Starting surge
- Inverter surge rating
- Battery current capability
- Cable voltage drop
Reason 8: Solar Charging Is Hovering Around the Reconnect Threshold
This problem is common early in the morning or under cloudy conditions.
Example:
- Solar produces a small charging current.
- Battery voltage slowly reaches the reconnect threshold.
- Inverter starts.
- Load demand is much greater than solar charging power.
- Battery voltage falls.
- Inverter disconnects.
- Solar raises voltage again.
- Cycle repeats.
The system does not have enough net charging current to support the returning load.
A voltage threshold alone may therefore not be sufficient for automatic restart.
Where available, systems can use:
- Charge-detect voltage
- SOC-based restart
- Minimum charging time
- Delayed reconnect
to prevent repeated cycling.
Reason 9: Generator or Grid Input Is Unstable
A charger may repeatedly start and stop when its AC source is unstable.
Possible causes include:
- Undersized generator
- Generator speed instability
- Frequency variation
- Low AC voltage
- Overloaded generator
- Poor AC connections
- Transfer-switch problems
The charger starts when AC input becomes acceptable.
Then charger load causes generator voltage or frequency to fall outside its operating range.
The charger disconnects.
Generator voltage recovers.
The charger reconnects.
The customer hears repeated relay clicking.
Check both the DC battery side and the AC input side.
Reason 10: Charger Power Is Too Small for the Loads
Suppose:
Charger output = 20A
but connected DC-equivalent loads require:
40A
The charger can gradually raise battery voltage when loads are disconnected.
Once the relay reconnects the system, battery current becomes negative again.
Voltage falls and the disconnect repeats.
Increasing the battery voltage threshold does not solve the underlying energy deficit.
Reason 11: Multiple Chargers Are Interacting
The battery bank may be connected to:
- Solar MPPT
- Grid charger
- Generator charger
- Inverter/charger
If their settings differ, one charger may raise the battery voltage enough to trigger another device.
Then charging conditions change and voltage falls again.
Review:
- Absorption voltage
- Float voltage
- Restart voltage
- Charge-detect voltage
- Charger priorities
- Current limits
All charging equipment should be considered as one system.
Reason 12: The Relay Coil Voltage Is Unstable
Not every clicking problem is caused by the battery’s main DC voltage.
A relay coil may be powered by:
- 12V auxiliary supply
- 24V control supply
- Internal inverter power supply
If this control voltage is unstable, the relay can chatter even when the main battery voltage is acceptable.
Possible causes include:
- Loose control wiring
- Failed DC-DC converter
- Undersized auxiliary power supply
- Damaged relay coil
- Poor PCB connection
Measure the relay control voltage during the clicking event.
Reason 13: The Relay or Contactor Is Mechanically Worn
A contactor is an electromechanical component.
After many switching operations, it may develop:
- Worn contacts
- Weak coil
- Damaged spring
- Pitted contact surfaces
- Mechanical sticking
A worn contactor can create both electrical resistance and unstable operation.
If battery voltage and control voltage remain stable while the contactor still chatters, the component itself may require replacement.
Reason 14: High Battery Voltage Is Triggering Protection
Relay cycling can also occur near the upper voltage limit.
Possible causes include:
- Charger voltage too high
- Solar-controller setting incorrect
- One battery in the string reaching excessive voltage
- Incorrect temperature compensation
The inverter may disconnect because of high DC voltage, then reconnect once voltage falls.
Check event logs rather than assuming every clicking event is low-battery related.
How to Diagnose Relay Clicking
Step 1: Identify Which Device Is Clicking
Determine whether the sound comes from:
- Inverter
- Charger
- DC contactor
- Transfer switch
- Battery protection relay
Step 2: Check Alarm History
Look for:
- Low battery
- High battery voltage
- Overload
- AC input fault
- High temperature
Step 3: Measure Battery Voltage During the Event
Record:
- Voltage before relay closes
- Minimum voltage after connection
- Disconnect voltage
- Voltage recovery
Step 4: Measure at the Inverter
Compare inverter input voltage with battery-terminal voltage.
Step 5: Measure Individual Batteries
Look for one abnormal unit.
Step 6: Measure DC Current
Check both startup and steady-state current.
Step 7: Disconnect Loads
Determine whether the system remains stable with no AC load.
Step 8: Review Threshold Settings
Check:
- Low-voltage disconnect
- Restart voltage
- Charge-detect voltage
- Delay time
Step 9: Inspect Wiring and Connections
Look for heating, corrosion, and loose connections.
Step 10: Test the Relay Control Voltage
If battery conditions appear normal, investigate the control circuit.
What Not to Do
Do not solve repeated clicking by automatically:
- Lowering battery cutoff voltage
- Increasing breaker size
- Bypassing the contactor
- Shorting relay contacts
- Repeatedly resetting the inverter
These actions may remove protection without correcting the underlying fault.
Frequently Asked Questions
Why does my inverter click every few seconds when the battery is low?
Battery voltage may recover after shutdown, reach the restart threshold, then collapse again when the load reconnects.
Why does the relay stop clicking after I disconnect appliances?
The connected load may be causing excessive voltage sag or startup current.
Can a weak battery cause relay chattering?
Yes. A weak or high-resistance battery can show acceptable no-load voltage but collapse when the relay reconnects the load.
Can cable size cause the problem?
Yes. Excessive cable voltage drop can cause the inverter to repeatedly cross its low-voltage thresholds.
Why does it happen only in the morning?
Low solar charging power may raise battery voltage enough for restart but not provide enough energy to support the load.
Should I replace the relay?
Only after confirming that battery voltage, control voltage, load, wiring, and threshold settings are correct.
Conclusion
Repeated relay or contactor clicking in a lead-acid battery system usually means that the electrical conditions are repeatedly crossing a control threshold.
Common causes include:
- Battery voltage recovery
- Insufficient restart hysteresis
- Weak battery capacity
- One weak series battery
- Cable voltage drop
- Loose connections
- Excessive load surge
- Insufficient solar or charger current
- Unstable AC input
- Relay or control-circuit faults
For a technical diagnosis, provide the battery-bank voltage and capacity, inverter/charger model, relay or contactor type, low-voltage cutoff, restart voltage, battery voltage during clicking, connected load, cable size and length, and charging source.
