Introduction

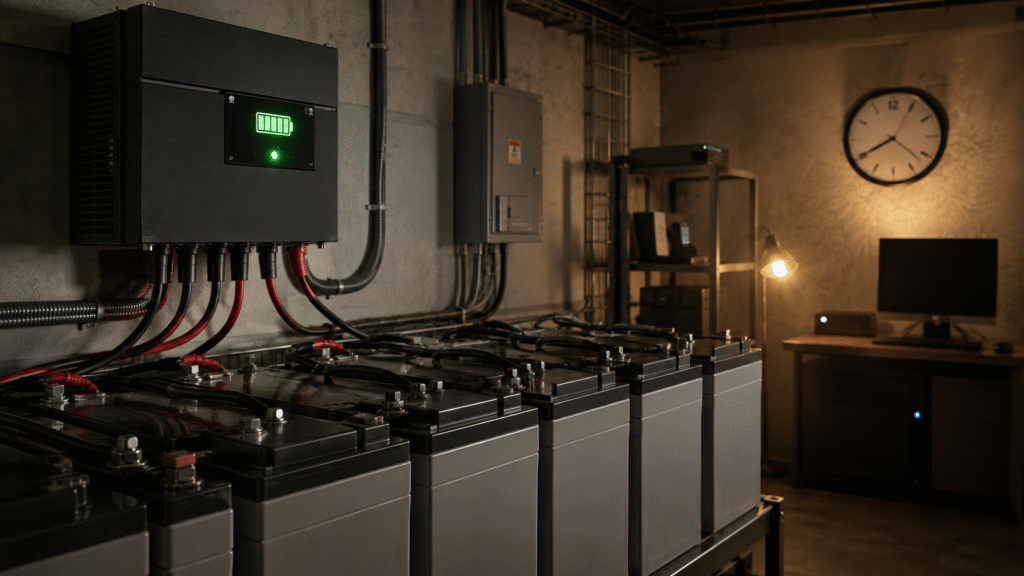

A lead-acid battery bank may appear to charge unusually quickly. The charger starts in bulk mode, reaches the absorption voltage after a short period, and then changes to float.
However, when the inverter begins supplying the load, the battery runtime is still much shorter than expected.
This creates an important question:
If the charger has already entered float mode, why is the battery not providing full capacity?
The answer is that a charger entering float does not always prove that the battery has recovered its full usable capacity. Depending on the charger design, the transition may be based on battery voltage, charging current, time, or a combination of these conditions. A weak battery, incorrect setting, excessive cable resistance, or one abnormal battery in a series string can cause the charging voltage to rise prematurely.
What Do Bulk, Absorption, and Float Mean?
A typical multi-stage lead-acid charger operates through several stages.
Bulk Charging
The charger supplies a controlled current while battery voltage gradually rises.
Absorption Charging
The charger holds the battery at a specified voltage while charging current gradually decreases.
Float Charging
The charger reduces the voltage to a maintenance level intended to keep a fully charged battery ready for use without continuous heavy overcharging.
Two-step constant-voltage chargers may change from the higher recovery voltage to float after the charging current falls below a defined threshold. Other chargers use a fixed absorption time or an adaptive charging algorithm. The exact transition logic depends on the charger model.
Because the charger normally monitors electrical conditions rather than directly measuring the battery’s internal chemical state, an abnormal battery can sometimes satisfy the float-transition conditions before it has recovered adequate capacity.
Reason 1: The Battery Has High Internal Resistance
High internal resistance is one of the most common reasons a lead-acid battery reaches the absorption voltage too quickly.
When charging current flows through internal resistance, part of the measured terminal voltage is caused by the resistance rather than by restored battery capacity.
The charger may therefore see the target absorption voltage even though the battery is still at a relatively low state of charge.
Lead-acid batteries charged at a high rate can reach the absorption-voltage limit before they are fully charged. Victron notes that internal resistance can cause the absorption voltage to be reached when an AGM battery is only partially charged, requiring sufficient absorption time to complete the charging process.
High resistance may result from:
- Sulfation
- Battery aging
- Positive-grid corrosion
- Loss of active plate material
- Extended partial-state-of-charge operation
- Long-term storage without recharging
- Repeated deep discharge
- Poor internal connections
A high-resistance battery may show all of the following symptoms:
- Voltage rises rapidly during charging.
- Charging current falls earlier than expected.
- The charger enters float quickly.
- Voltage looks normal after charging.
- Voltage falls sharply under load.
- Backup time is much shorter than expected.
Reason 2: Sulfation Has Reduced Charge Acceptance
During normal discharge, lead sulfate forms on the battery plates. Proper charging converts much of this material back into active components.
When a battery remains discharged or partially charged for an extended period, larger and more stable sulfate crystals may develop. This reduces the active plate area and can make the battery more difficult to recharge.
The battery may accept a limited amount of current, causing its terminal voltage to rise quickly. The charger interprets the high voltage as progress toward full charge, although the battery has absorbed relatively little energy.
Charging after every period of use and avoiding long periods in a deeply discharged state are standard lead-acid maintenance recommendations.
Mild sulfation may sometimes be improved by a manufacturer-approved recovery procedure. Severe sulfation, plate corrosion, or active-material loss may be irreversible.
A desulfation or equalization mode should not be applied automatically to every AGM, GEL, OPzV, or VRLA battery. The battery manufacturer must confirm whether the procedure is permitted.
Reason 3: Absorption Time Is Too Short
Reaching the absorption voltage is only one stage of the charging process.
Once the voltage reaches the absorption target, the battery may still require considerable time to accept the remaining charge. If the charger remains in absorption for only a few minutes, the battery may repeatedly enter float without completing a full recharge.
This can happen when:
- A fixed absorption time is incorrectly programmed.
- Adaptive charging settings are unsuitable.
- The charger detects a low tail current too early.
- The charger was designed for a smaller battery.
- The selected battery profile is incorrect.
- The charger is restarted several times during the day.
- Solar charging is interrupted by clouds or sunset.
A battery that reaches the absorption voltage at a relatively low state of charge requires sufficient time at the correct controlled voltage. High-rate charging does not necessarily reduce the total charging time of lead-acid batteries because absorption remains essential.
Reason 4: The Charger Is Configured for the Wrong Battery Type
AGM, GEL, flooded, OPzV, OPzS, and other lead-acid battery designs do not necessarily use identical charging parameters.
An incorrect charger profile can cause:
- Absorption voltage that is too low
- Absorption time that is too short
- Float voltage that is unsuitable
- Unapproved equalization
- Incorrect temperature compensation
- Inadequate charging current
For example, if a charger is configured for a lower absorption voltage than the selected battery requires, it may reach that threshold quickly and move through the charging stages without restoring full capacity.
Conversely, an excessively high setting can cause gassing, water loss, venting, corrosion, or thermal damage.
The charging voltage must be taken from the selected battery model’s technical data rather than from a generic lead-acid setting. EnerSys application guidance, for example, provides product-specific float and commissioning values and emphasizes the influence of battery temperature.
Reason 5: The Charger Is Too Small for the Battery Bank
A large battery bank connected to a low-current charger may take a long time to recharge fully.
However, the charger can still reach the absorption or float voltage if:
- The battery bank was only lightly discharged.
- One battery has high resistance.
- The load is disconnected near the end of charging.
- Surface charge raises the measured voltage.
- The charger uses a timer rather than actual returned capacity.
Consider a 48V 600Ah battery bank connected to a charger that supplies only a small current. Even if the charger display changes to float, it may not have returned all the ampere-hours removed during the previous discharge.
The charging system should be sized using:
- Battery-bank Ah capacity
- Permitted charging current
- Required recharge time
- Simultaneous DC loads
- Available solar or generator hours
- Battery manufacturer recommendations
Reason 6: Cable Voltage Drop Is Misleading the Charger
The charger may measure voltage at its own output terminals rather than directly at the battery terminals.
If there is excessive resistance in the charging circuit, the charger may measure a higher voltage than the voltage actually reaching the battery.
Possible causes include:
- Charging cables that are too small
- Excessively long cables
- Loose terminals
- Corroded connectors
- High-resistance fuse holders
- Damaged breakers
- Poorly crimped cable lugs
A power supply used for lead-acid charging should be adjusted using the voltage measured at the battery end of the cable, and its output current must remain within the battery’s permitted charging-current range.
How to Check
While charging, measure:
- Voltage at the charger output
- Voltage at the battery-bank terminals
- Voltage across the main fuse or breaker
- Voltage across each major cable connection
A significant difference between charger voltage and battery voltage indicates cable or connection loss.
Reason 7: One Battery in the Series String Reaches High Voltage Early
A 48V battery bank may contain four 12V batteries in series. The charger controls the total bank voltage, but it may not monitor each 12V battery independently.
If one battery reaches a high voltage early, the total bank voltage can reach the charger’s absorption threshold while the other batteries remain undercharged.
Series-connected batteries carry the same current, but differences in capacity, internal resistance, temperature, and state of charge can produce unequal individual voltages. Midpoint monitoring is therefore useful in higher-voltage lead-acid banks.
For example:
- Battery 1: 13.8V
- Battery 2: 13.9V
- Battery 3: 13.7V
- Battery 4: 15.0V
Total voltage:
56.4V
The charger may interpret 56.4V as the required absorption voltage. However, three batteries may still be undercharged while the fourth is being overcharged.
Measuring only the total bank voltage would fail to reveal this problem.
Reason 8: The Battery Was Only Slightly Discharged
Not every quick transition to float indicates a fault.
If the battery was already nearly full, the charger may correctly spend only a short time in bulk and absorption.
Before diagnosing a problem, determine:
- Previous discharge duration
- Lowest battery voltage
- Ampere-hours removed
- Actual inverter load
- Time since the previous full charge
- Whether another charger was operating
A solar controller may also enter float quickly if a grid charger or generator charger has already raised the battery voltage.
The key difference is runtime. A healthy, nearly full battery should still deliver the expected energy under a controlled load.
Reason 9: The Charger’s Tail-Current Setting Is Incorrect
Some chargers end absorption when charging current falls below a specified percentage of battery capacity.
For example, the charger may interpret a low current as evidence that the battery is full.
This method becomes inaccurate when:
- The battery capacity setting is wrong.
- The battery has high internal resistance.
- The charging-current sensor is inaccurate.
- Loads are connected in an unmonitored location.
- The battery bank has lost substantial capacity.
- The battery accepts very little current because of sulfation.
A two-step charging system that uses current as a switching condition must be configured for the actual battery bank, not merely left at an unrelated default setting.
Reason 10: Temperature Compensation Is Incorrect
Lead-acid charging voltage changes with battery temperature.
If the battery is hot and the charger does not reduce voltage appropriately, the battery can reach the target voltage quickly and experience excessive charging stress.
If the battery is cold and the charger uses a voltage that is too low, it may remain undercharged.
Common temperature-sensing problems include:
- No temperature sensor
- Sensor attached to the wrong battery
- Sensor measuring room air rather than the battery
- Incorrect compensation coefficient
- Sensor damaged or disconnected
- Multiple chargers using different temperature information
Charging recommendations and service-life expectations are normally specified at a defined reference temperature.
A Practical Diagnostic Procedure
Step 1: Confirm the Battery Model
Record:
- Battery technology
- Rated voltage
- Rated Ah capacity
- Capacity rate, such as C10 or C20
- Recommended absorption voltage
- Recommended float voltage
- Recommended charging current
- Temperature-compensation value
Step 2: Fully Charge the Battery Bank
Use the manufacturer-approved charging profile and allow the absorption stage to complete.
Step 3: Record the Charging Curve
Record every 15–30 minutes:
- Total battery voltage
- Individual battery voltage
- Charging current
- Battery temperature
- Charger operating stage
Step 4: Compare Charger and Battery Voltage
Measure voltage at both ends of the charging cables while current is flowing.
Step 5: Check Every Battery in the Series String
Look for one battery that rises significantly higher than the others.
Step 6: Inspect Connections
Check:
- Cable size
- Cable length
- Terminal torque
- Cable-lug crimping
- Fuse holders
- Circuit breakers
- Busbars
Step 7: Perform an Under-Load Test
After charging, operate a known load and measure:
- Total bank voltage
- Individual battery voltage
- DC current
- Runtime
- Temperature
Step 8: Complete a Capacity Test
A controlled capacity test is the most reliable way to determine whether the battery bank has recovered its usable capacity.
What Not to Do
Do not automatically:
- Increase charging voltage
- Extend equalization indefinitely
- Bypass the charger’s safety controls
- Use a lithium charging profile
- Replace only one battery without testing the complete string
- Assume the battery is full because the display shows float
- Continue charging a swollen or overheating battery
Battery systems can deliver very high short-circuit current. Charging and connection work should be carried out by qualified personnel using appropriate protective equipment.
Frequently Asked Questions
Why does my battery charger go directly to float?
The battery may already be nearly full, the charger may be using an incorrect profile, or high battery or cable resistance may cause the measured voltage to rise prematurely.
Does float mode mean the battery is 100% charged?
Not always. Float indicates that the charger’s transition conditions have been met. It does not directly measure the battery’s present usable capacity.
Why does the battery voltage rise quickly but fall quickly under load?
This commonly indicates high internal resistance, sulfation, reduced capacity, or an abnormal battery within the series string.
Can I increase the absorption time?
Only within the battery manufacturer’s approved charging limits. Excessive absorption can cause overcharging and water loss.
Should I replace the charger or the battery?
Test the charging voltage, charging current, cable voltage drop, individual battery voltages, and measured battery capacity before deciding.
Conclusion
A lead-acid battery that reaches float quickly but provides short runtime is not necessarily fully charged.
The most common causes are:
- High internal resistance
- Sulfation
- Insufficient absorption time
- Incorrect charging profile
- Inadequate charging current
- Cable voltage drop
- One high-voltage battery in the series string
- Incorrect tail-current settings
- Poor temperature compensation
For a project-specific diagnosis, provide the battery model, age, quantity, series-parallel arrangement, charger model, charging-voltage settings, charging current, time required to reach float, individual battery voltages, and measured runtime.
